This is latest quality and easily to used computerized photometer access now a day, our products are standard and the unique materials for filtrations system honesty testing. Providing the fully useful for the base unit, unlimited personally activity in this field. Aerosol photometer access with fixed example for using in different situation.

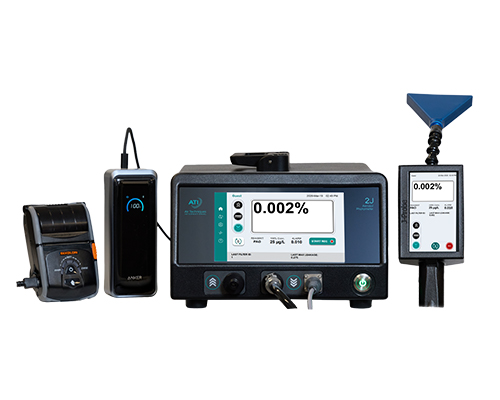

Three unique report functions are now available with the 2i through the USB or optional thermal printer interface. Continuous mode offers the same output as ATI’s legacy photometers to ensure backward compatibility. Monitoring mode provides the ability to collect data at user defined intervals for long term sampling. Summary mode, which gives discrete reporting capability for individual filter locations, can output to the thermal printer to meet customer documentation requirements.
The iProbe goes about as an expansion of the based instruments through an almost indistinguishable UI. Choice symbols from the based units are present. This catch, the testing area chosen and exchanged by method for an electronics control valuing systems.
The 2i is the ideal portable, yet rugged instrument for in-situ filtration system testing. With the NEW iProbe Plus, it provides secure data storage, reporting, and traceabilityin the palm of your hand.

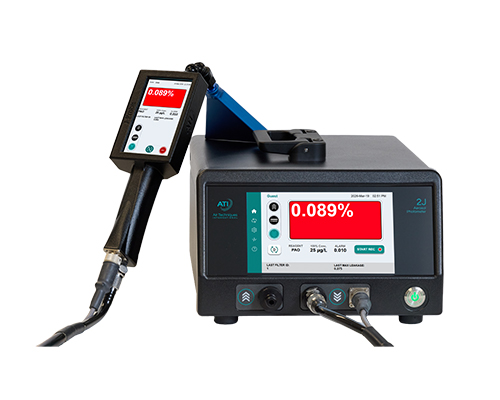

The 2J Aerosol Photometer (PRO model) is a high-precision, portable instrument for HEPA/ULPA filter leak testing and aerosol measurement, featuring 21 CFR Part 11 compliance, secure audit trail, and complete data integrity for regulated environments. It provides accurate, real-time results using advanced light scattering technology for cleanroom validation and HVAC applications.
| Flow Rate | 1 CFM (28.3 LPM) ±5% |
| Dynamic Range | 0.0001 to 120 mg/m³ (up to 600 mg/m³ – PAO High) |
| Accuracy | ±1% of reading (0.01%–100%) |
| Repeatability | ±0.5% (>0.01%–100%) |
| Display | 7” (17.8 cm) color touchscreen |
| Dimensions | 39.1 × 25.4 × 17.8 cm |
| Weight | 7.7 kg |
| Reagents | PAO-4, PAO-4 High, DOP, DEHS, Ondina, Paraffin, user-defined |
| Flow Control | 1 CFM ±5% with auto-zero |
| Alarm | Audible, visual & vibratory (probe) |
| Data Output | USB, Wi-Fi, optional thermal printer |
| Power Supply | 100–240V AC, USB-C (100W), external battery compatible |
| Data Storage (PRO) | 64 GB, PDF & CSV reports, up to 150,000 scans |
| Compliance | ISO 14644-3, NSF-49, IEST-RP-CC034, EN 12469, ISO/IEC |
